Product Description

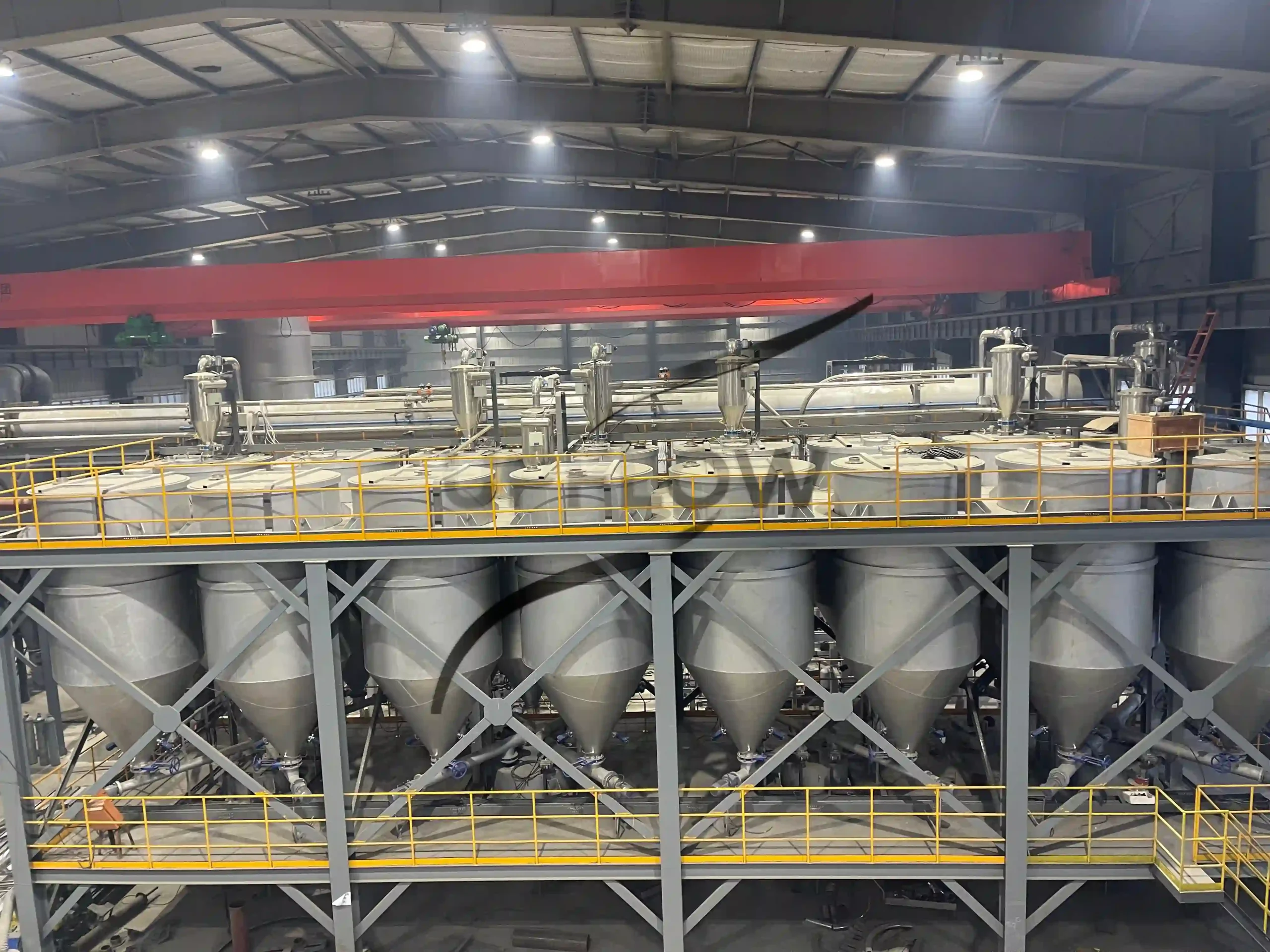

UPDFLOW’s proportioning and feeding systems, metering and proportioning systems (metering and packaging systems, weighing and proportioning systems, weighing and proportioning feeding systems) is designed for accurate metering, proportioning, and conveying of multiple bulk or powder materials. The system integrates weighing, proportioning, feeding, and conveying into a fully automated solution, ensuring high precision, stable operation, and efficient production control.
By combining advanced weighing technology, automated feeders, and centralized PLC control, the system achieves precise material dosing with minimal human intervention. All batching and feeding processes are monitored and controlled through a computerized control center, effectively reducing manual errors and ensuring consistent product quality.
Thanks to its high automation level, hygienic design, and reliable metering performance, the system is widely applied in industries such as pharmaceuticals, food processing, chemicals, building materials, and animal feed production.
System Features
1.Each batching silo is equipped with an independent feeding and weighing unit, ensuring flexible and accurate material control
2.Precise batching achieved through various metering devices, including double butterfly valves, combination valves, slide valves, screw conveyors, and load cells
3.Capable of simultaneous metering, batching, and mixing of multiple materials
4.High weighing accuracy up to ±0.2% (depending on material properties), ensuring precise proportioning
5.Long-distance material conveying capability:Horizontal distance up to 180 meters. Vertical lifting height up to 50 meters
6.Fully automated production process with real-time monitoring and centralized control
7.Intelligent data management system automatically records, stores, and backs up batching parameters to prevent data loss
8.Optimizes raw material storage management and significantly improves production efficiency
9.Provides objective and reliable production data for output analysis and production planning
10.Economical, practical, and easy to integrate into existing production lines
11.Customization Capability. Different materials require different weighing and feeding solutions
UPFLOW can provide customized weighing methods and system configurations based on material characteristics, production capacity, and on-site operating conditions, ensuring optimal system performance for each application.
Project Cases
For project information:Magnesium Silicate Pneumatic Conveying & Batching System Project in Kenya.
FAQ
1. What is an automatic batching system and how does it work?
An automatic batching system is an automated material handling solution designed to accurately weigh, dose, and transfer different raw materials according to predefined formulas or production requirements. The system typically consists of storage units, feeding equipment, weighing devices, control systems, and material conveying components. Through PLC control and automated operation, the system can reduce manual intervention, improve batching accuracy, and ensure consistent product quality. UPFLOW designs customized automatic batching systems for powder and bulk material applications, helping manufacturers achieve efficient and reliable automated production processes.
2. What materials can be handled by an automatic powder batching system?
An automatic powder batching system can be used for various powder and bulk materials, including pharmaceutical ingredients, food powders, chemical materials, mineral powders, and battery materials. Typical applications include starch, calcium carbonate, silica, pigments, additives, and other fine powders that require accurate dosing and controlled feeding. The system design depends on material characteristics such as bulk density, particle size, flowability, moisture content, and dust generation. UPFLOW evaluates these factors to select suitable feeding, weighing, and conveying equipment for each customized batching application.
3. How does an automatic batching system improve production efficiency and accuracy?
An automatic batching system improves production efficiency by replacing manual weighing and feeding operations with automated control processes. The system can accurately measure different materials according to preset recipes, reduce human errors, minimize material waste, and maintain consistent product quality during continuous production. By integrating weighing sensors, PLC control, feeding equipment, and conveying systems, manufacturers can achieve better process control and higher productivity. UPFLOW provides customized powder dosing and batching solutions designed according to production capacity, accuracy requirements, and specific manufacturing processes.
4. Can an automatic batching system be integrated with pneumatic conveying equipment?
Yes, an automatic batching system can be integrated with pneumatic conveying systems to create a complete automated powder handling solution. In many industrial applications, raw materials are first discharged from bags, big bags, or storage tanks, then accurately weighed and transferred through pneumatic conveying equipment to the next production stage. Integration between batching and conveying systems helps improve automation levels, reduce manual handling, and create a cleaner production environment. UPFLOW can design complete solutions combining automatic batching systems, powder feeding equipment, and pneumatic conveying systems based on customer process requirements.
5. Does UPFLOW provide customized automatic batching system design?
Yes, UPFLOW provides customized automatic batching system design based on different production requirements, material characteristics, and process conditions. Our engineering team analyzes factors such as raw material types, batching accuracy, production capacity, feeding methods, and factory layout before developing a suitable solution. The system can be customized with different weighing modules, feeding equipment, control systems, dust collection units, and conveying integration options. UPFLOW focuses on providing reliable automated material handling solutions for industries including pharmaceutical, food, chemical, and battery material manufacturing.
Related Solution: Pneumatic Conveying System Integration
An automatic batching system is often integrated with a complete pneumatic conveying system solution to achieve automated powder transfer, accurate dosing, and efficient production processes. By combining weighing equipment, feeding devices, control systems, and pneumatic conveying technology, manufacturers can improve material handling efficiency and maintain consistent product quality.
UPFLOW designs customized powder handling solutions that integrate automatic batching systems with pneumatic conveying systems, feeding equipment, and other process equipment according to different production requirements.
