Product Description

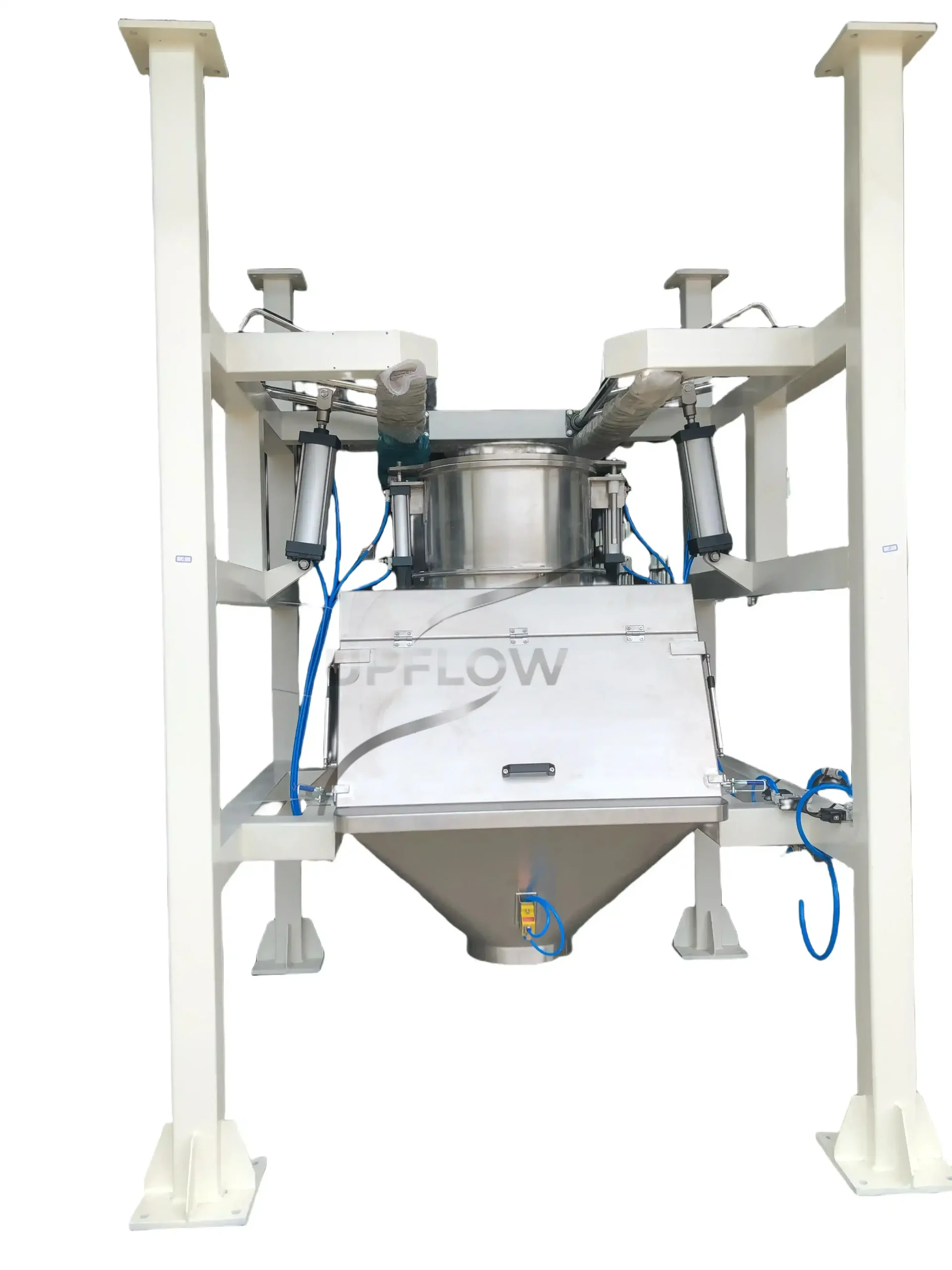

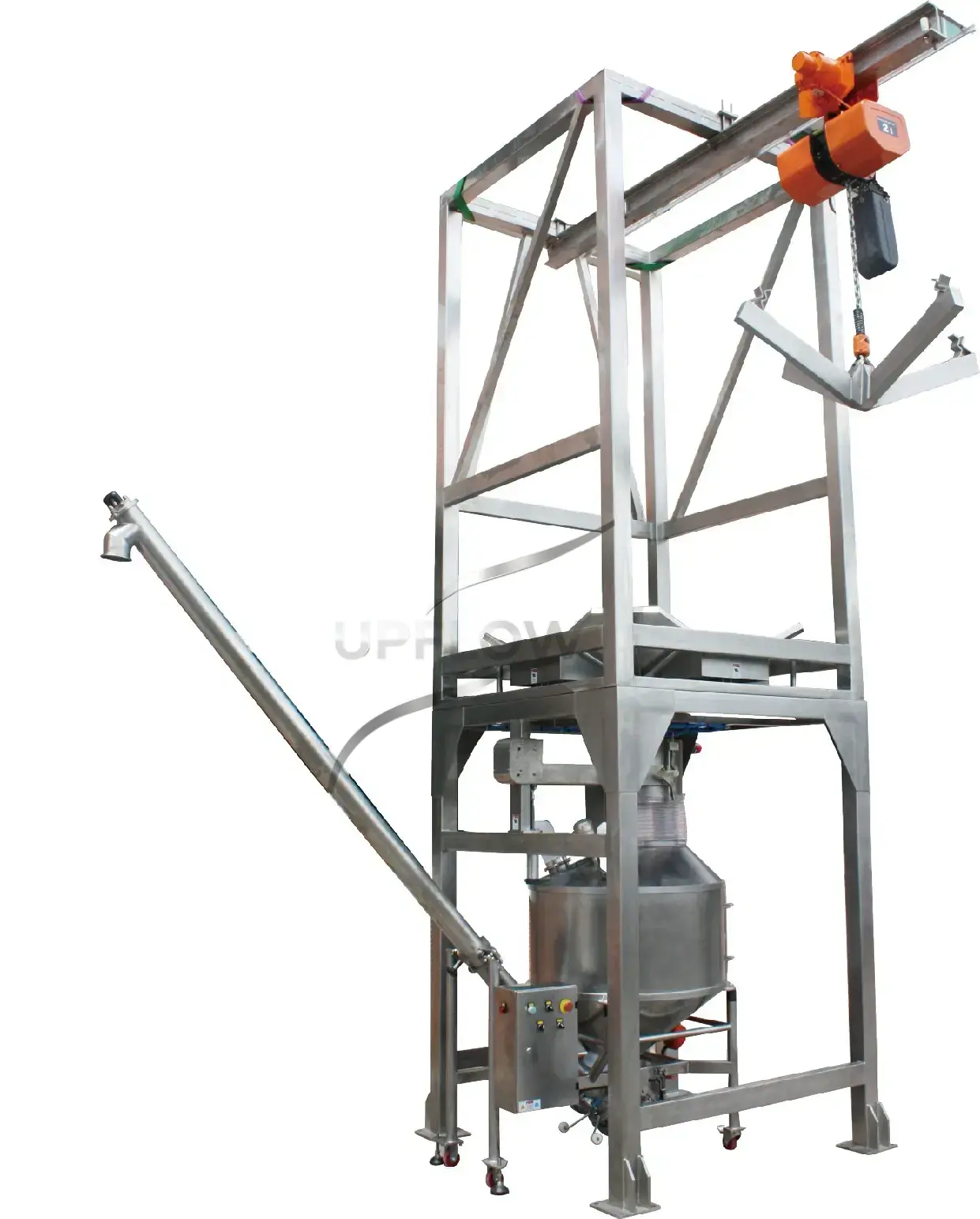

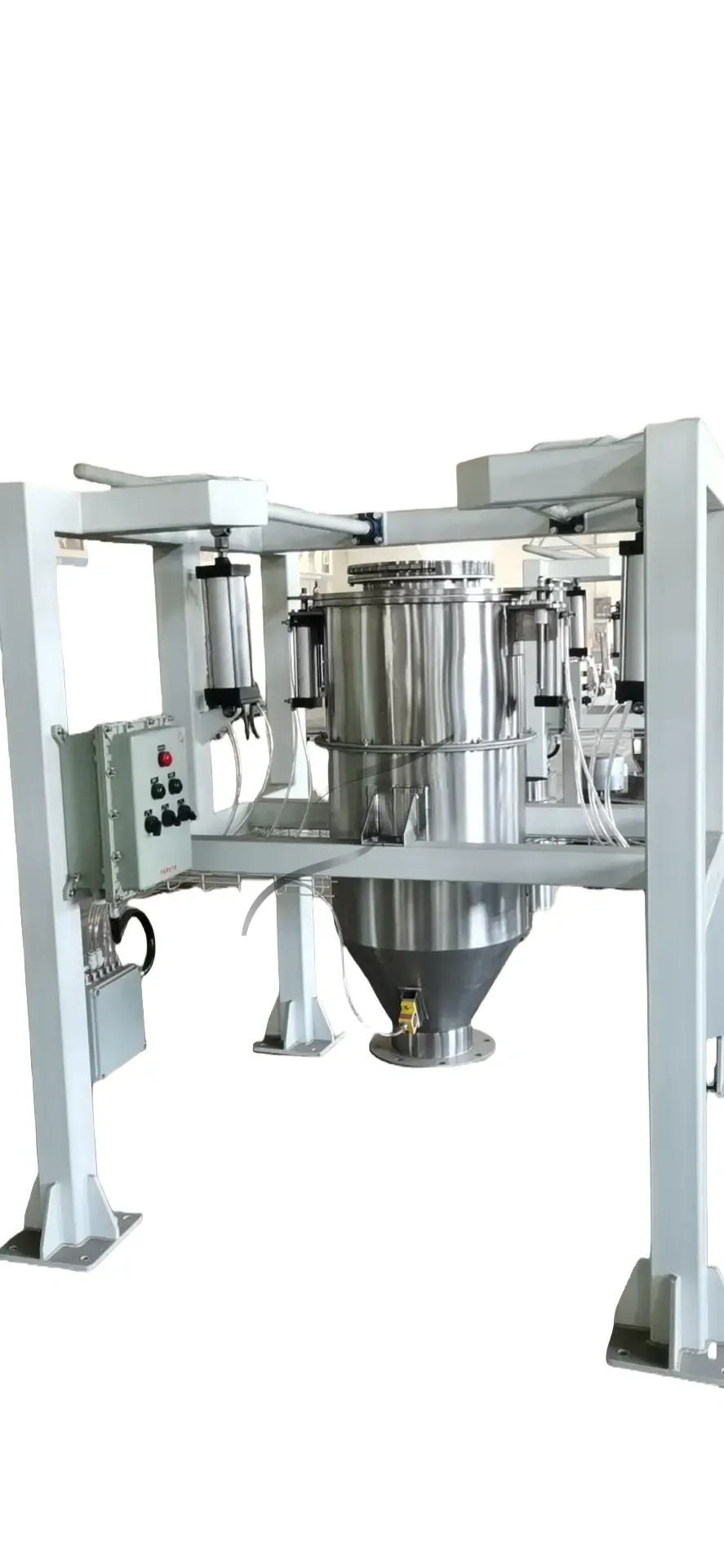

Our ton bag unpacking machine, also known as a jumbo bag unloader, is designed to efficiently and safely discharge powdery and granular materials from bulk bags. By utilizing an electric hoist to lift the ton bag to the rack, the machine presses the bag outlet with a pneumatic sealing system to achieve a dust-free environment. The bag is then untied and, with the help of gravity and squeezing plates, the material is discharged into a silo or directly into downstream processing equipment.
According to the user site conditions, workshop layout, process requirements and material characteristics, tonnage bag unpacking machine commonly has three forms: ① clip bag type tonnage bag unpacking machine; ② broken bag type tonnage bag unpacking machine; ③ combination of tonnage bag unpacking machine, according to the actual conditions of the selection of different models.
Application Field
It is suitable for automatic unbagging and discharging of dry powdery and granular materials in the fields of foodstuffs, medicine, chemical industry, metallurgy, new materials and so on, such as nitrate ash, magnesium oxide, quartz sand, limestone, wood chips, activated carbon, PVC powder, fly ash and so on.
Product Features
Wide Applicability: Suitable for both powder and granule handling.
Dust-Free Operation: Equipped with sealing systems and dust collectors for a clean and safe work environment.
High Efficiency: Discharging speed is 5–8 times faster than manual methods, requiring only 1–2 operators.
Stable Performance: Simple operation, low maintenance, and long service life.
Customizable Design: Can be combined with vacuum conveyors, screw feeders, mixers, and silos to form a complete automatic discharging station.
Product Specifications
Technical Parameters:
| Jumbo Bag Unloading Machine | Closed bag type | Broken bag dust collection type |
| Overall size (mm) | 1700×1700×4500 | 1700×1700×5500 |
| Material | Material contact SUS304 (standard) | Full Q235 (standard) |
| Handling capacity | 6-12 packages/h; 0.1-2T per package | 6-20 packages/h; 0.1-2T per package |
| Lifting weight (T) | 0.1-2 | |
| Lifting height (M) | 6M-12M | |
| Electric hoist type | Chain, wire rope | |
| Electric hoist requirements | Non-explosion-proof (standard), electrical explosion-proof, dust explosion-proof | |
| Configuration list | Steel structure bracket (standard) | |
| I-beam guide rail (standard) | ||
| Electric hoist (standard) | ||
| Pneumatic tapping mechanism (standard) | Closed bin (standard) | |
| Pneumatic bag clamping mechanism (standard) | Pneumatic closed door (standard) | |
| 60L cache bin (standard) | 1m³ storage bin (standard) | |
| 5 square dust collector (optional) | 20 square dust collector (standard) | |
| Manual plug valve (standard), butterfly valve, rotary valve | ||
| Air TAC solenoids(standard) | ||
| Manual control box (standard) | ||

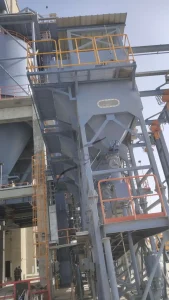

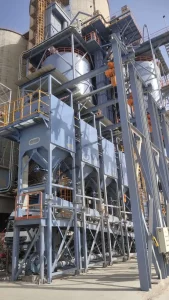

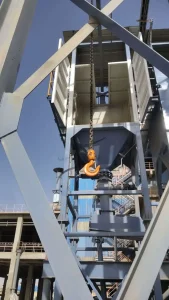

Product Cases
