Description
Product Overview

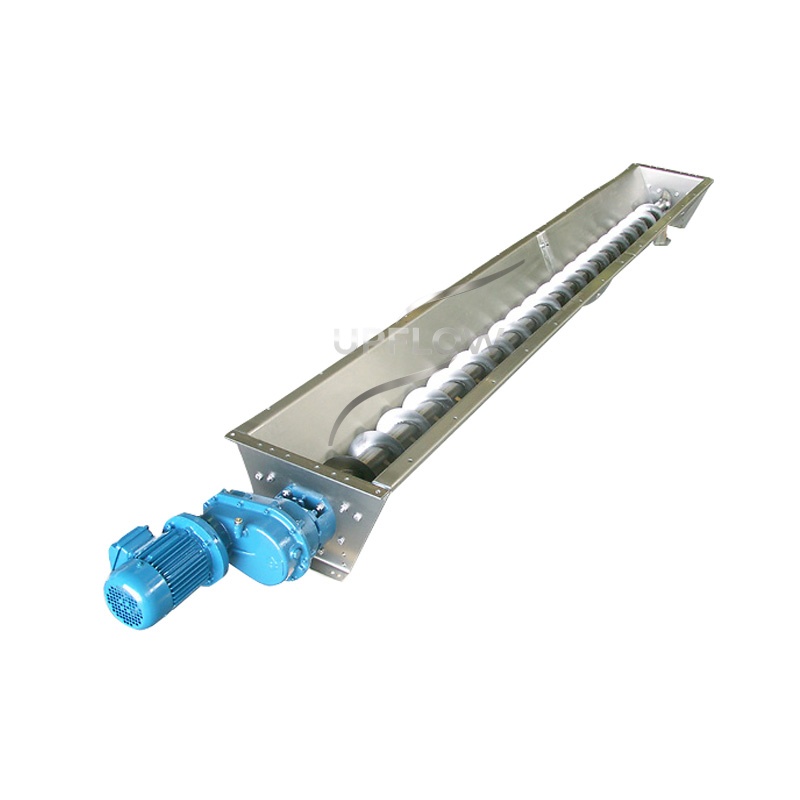

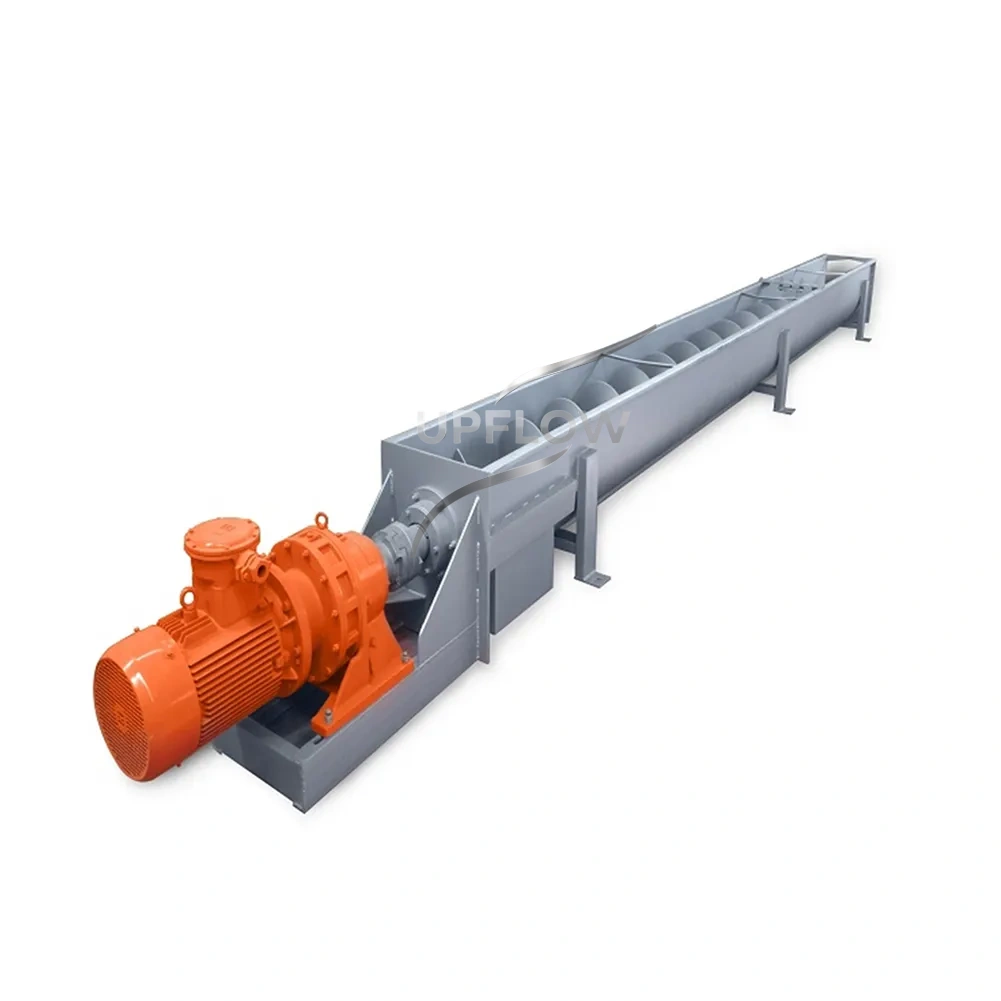

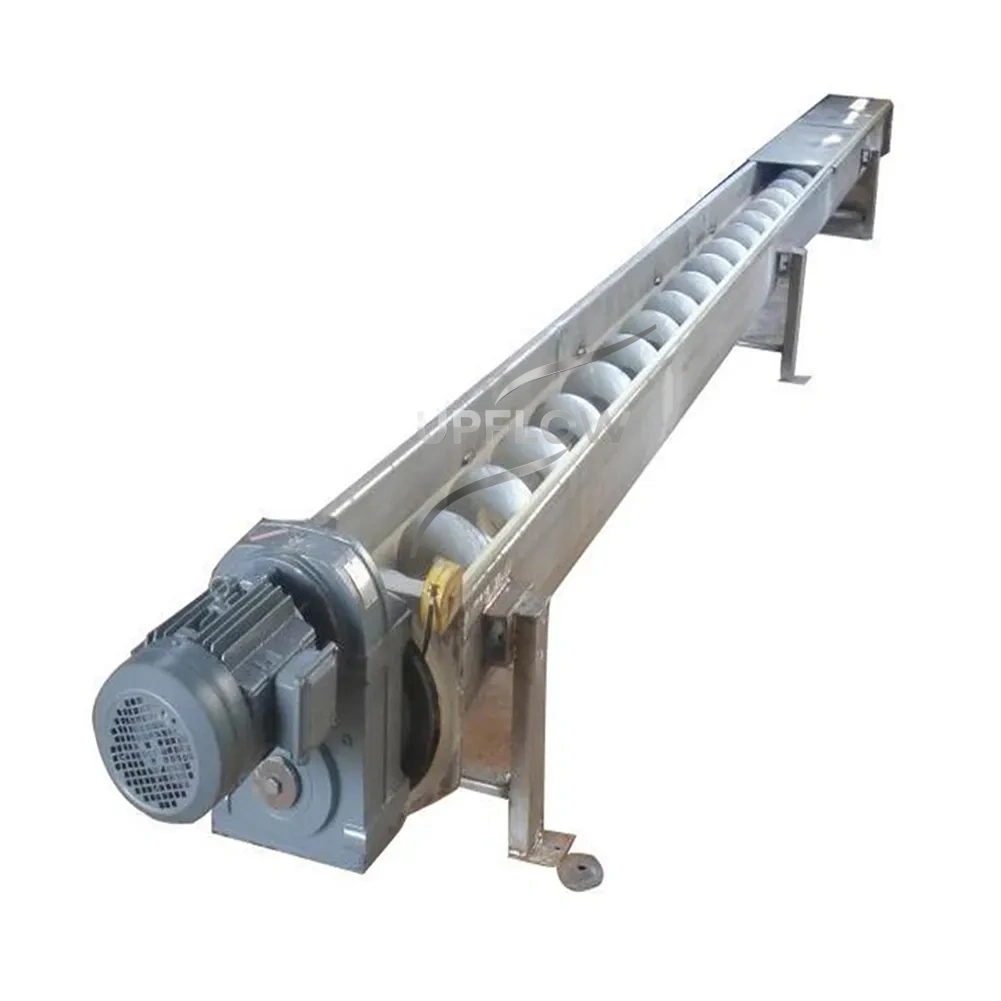

The U-Type Screw Conveyor is a widely used material handling equipment designed for transporting powdered, granular, and small lump materials. Its unique U-shaped trough design makes it ideal for horizontal or slight-angle conveying, and it can be equipped with covers to create a sealed system, minimizing dust emissions. Known for its compact structure, stable operation, high conveying capacity, and easy maintenance, this equipment is extensively used in industries such as construction materials, chemicals, food processing, and environmental protection.
Advantages of U-Type Screw Conveyor
✅ Simple Structure, Easy Installation & Maintenance – Compact design with a small footprint, making it easy to maintain and replace components.
✅ High Conveying Capacity, Wide Application Range – Capable of handling various materials, including powders, granules, and slurries.
✅ Excellent Sealing, Reduced Dust Pollution – Optional covers effectively control dust, meeting environmental standards.
✅ Customizable Design – Available in stainless steel or carbon steel, with anti-corrosion and wear-resistant treatments to suit different working conditions.
✅ Stable Operation, Low Noise – Equipped with high-efficiency transmission systems for long-term, reliable performance.
Technical Specifications
|
Model |
Screw Diameter (mm) | Capacity (m³/h) | Conveying Length (m) | Inclination Angle (°) |
Motor Power (kW) |
|
LS100 |
100 | 5-10 | 2-12 | ≤20° | 1.5-5.5 |
|
LS125 |
125 |
5-10 | 2-12 | ≤20° | 2.2-7.5 |
|
LS160 |
160 |
5-15 | 2-12 | ≤20° | 1.5-4 |
|
LS200 |
200 | 10-25 | 2-15 | ≤20° |
2.2-5.5 |
| LS250 | 250 | 20-35 | 2-20 | ≤20° |
3-7.5 |
| LS315 | 315 | 30-50 | 2-25 | ≤20° |
4-11 |
| LS400 | 400 | 40-80 | 2-30 | ≤20° |
5.5-15 |
|
Custom Sizes Available |
|||||
Applications
Construction Materials Industry – Conveying cement, lime powder, sand, and gravel.
Chemical Industry – Transporting powders, pigments, plastic pellets, and other raw materials.
Food Processing – Handling flour, rice, corn, and other agricultural products.
Environmental Protection – Managing sludge, waste, and dust collection materials.
Mining & Metallurgy – Transporting ore powder, coal powder, and metallurgical slag.
Why Choose Our U-Type Screw Conveyor?
Professional Customization – We offer various specifications, materials, and sealing structures to meet diverse conveying needs.
High-Quality Manufacturing – Made from high-strength materials, ensuring durability, corrosion resistance, and low maintenance.
Efficient & Reliable – Advanced manufacturing processes and transmission systems ensure long-term, stable operation.
Comprehensive After-Sales Service – We provide installation guidance, technical support, and spare parts supply to maximize equipment efficiency.
Call to Action
If you need more technical information or a customized quote, feel free to contact us! Our team is ready to provide the best U-Type Screw Conveyor solutions for your business.
