The Z-type bucket elevator is a continuous conveying device for conveying powder, granular or small pieces of materials vertically or obliquely. It is named because its conveying path is in the shape of a “Z”. It combines the characteristics of vertical and horizontal conveying and is suitable for complex working conditions that require multi-directional conveying.
Key Features (Advantages)
The Z Type Bucket Elevator is designed for gentle and efficient vertical transport of bulk materials. It is ideal for applications requiring multi-point feeding and discharging, with the following features:
Gentle Handling: Ensures low product breakage during transport
Enclosed Structure: Dust-proof and hygienic, suitable for food and pharmaceutical industries
Flexible Design: Customizable inlet and outlet positions to match factory layout
Material Options: Available in carbon steel, stainless steel 304/316
Easy Maintenance: Modular design allows for convenient cleaning and part replacement
Applications (Industries)
This elevator is suitable for a wide range of industries, especially where hygiene and low breakage are crucial:
Food Processing (e.g. rice, beans, nuts, dried fruits)
Pharmaceutical Industry (tablets, pellets)
Chemical Industry (powder, granules)
Grain Storage and Handling
Animal Feed
Plastic Pellet Conveying
Models (Equipment Models)
|
Model |
Bucket Width (mm) | Capacity (m³/h) | Max Height (m) | Speed (m/min) | Power (kW) |
|
ZT-160 |
160 | 1–3 | 6 | 5–10 | 0.75–1.5 |
|
ZT-250 |
250 | 3–6 | 8 | 5–10 |
1.5–2.2 |
| ZT-350 | 350 | 6–10 | 10 | 5–10 |
2.2–3.0 |
|
Custom Models Available |
|||||
Technical Parameters
Conveying Method: Continuous vertical lifting by chain or belt
Material Types: Granular, powdery, small lump materials
Bucket Types: Plastic, carbon steel, stainless steel
Discharge Method: Centrifugal or gravity discharge
Structure Options: Z-shape, L-shape, C-shape
Power Supply: Standard 380V/50Hz, other voltages available
Working Principle
The Z type elevator uses a series of buckets attached to a chain to lift materials vertically. The buckets collect materials from the bottom feed point and discharge them at the top or side outlet. The Z-shaped structure allows flexibility in routing around equipment or obstacles, with smooth and enclosed operation to maintain product cleanliness and integrity.
Selection Guide
If conveying high-temperature, high-abrasion materials → Select plate chain bucket elevator (NE)
🔹 If conveying general granular & powdery materials → Select ring chain bucket elevator (TH)
🔹 If conveying materials with good fluidity such as grain and feed → Select belt bucket elevator (TD)
🔹 If conveying food, medicine, electronic products → Select Z-type bucket elevator

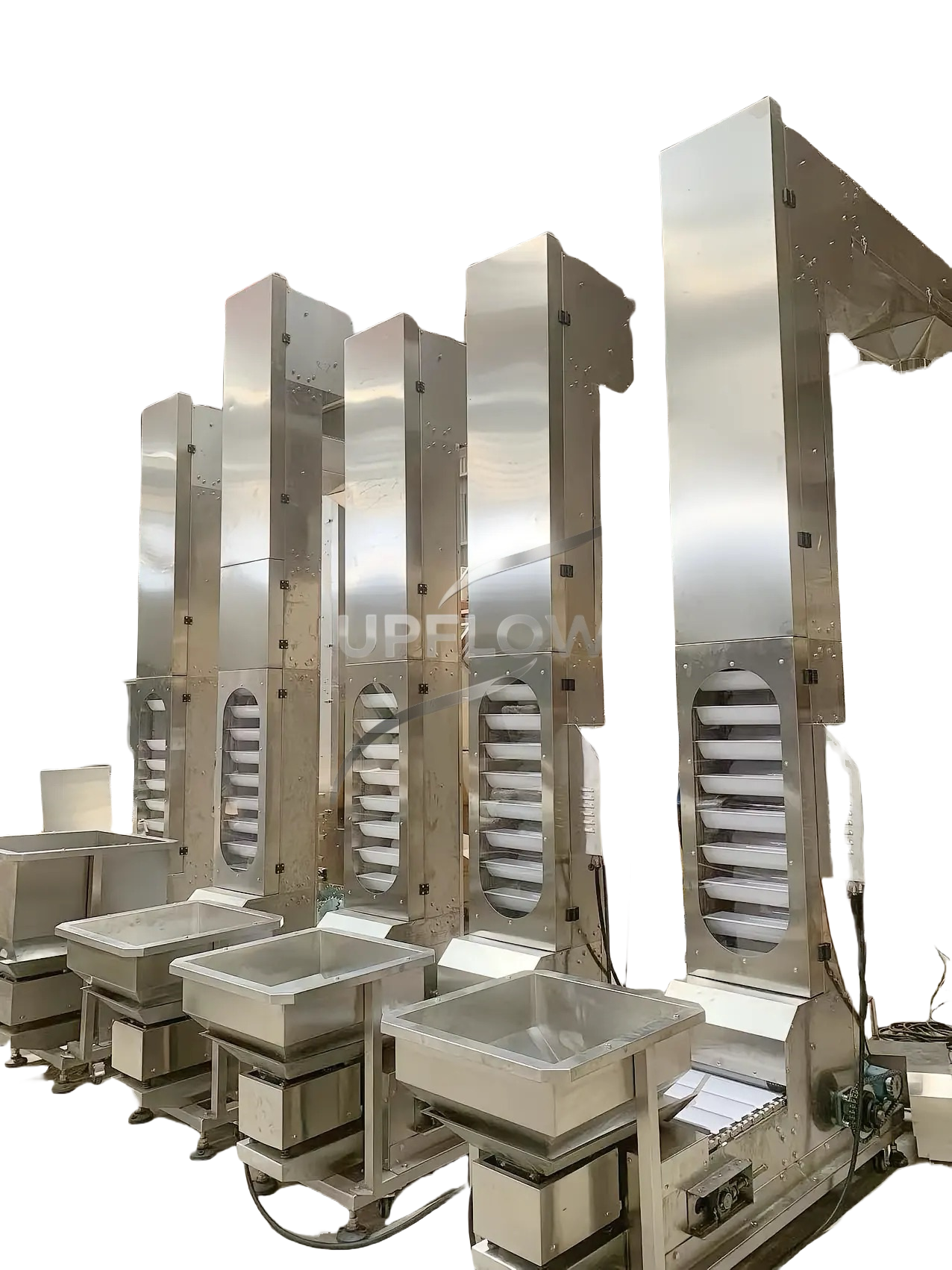

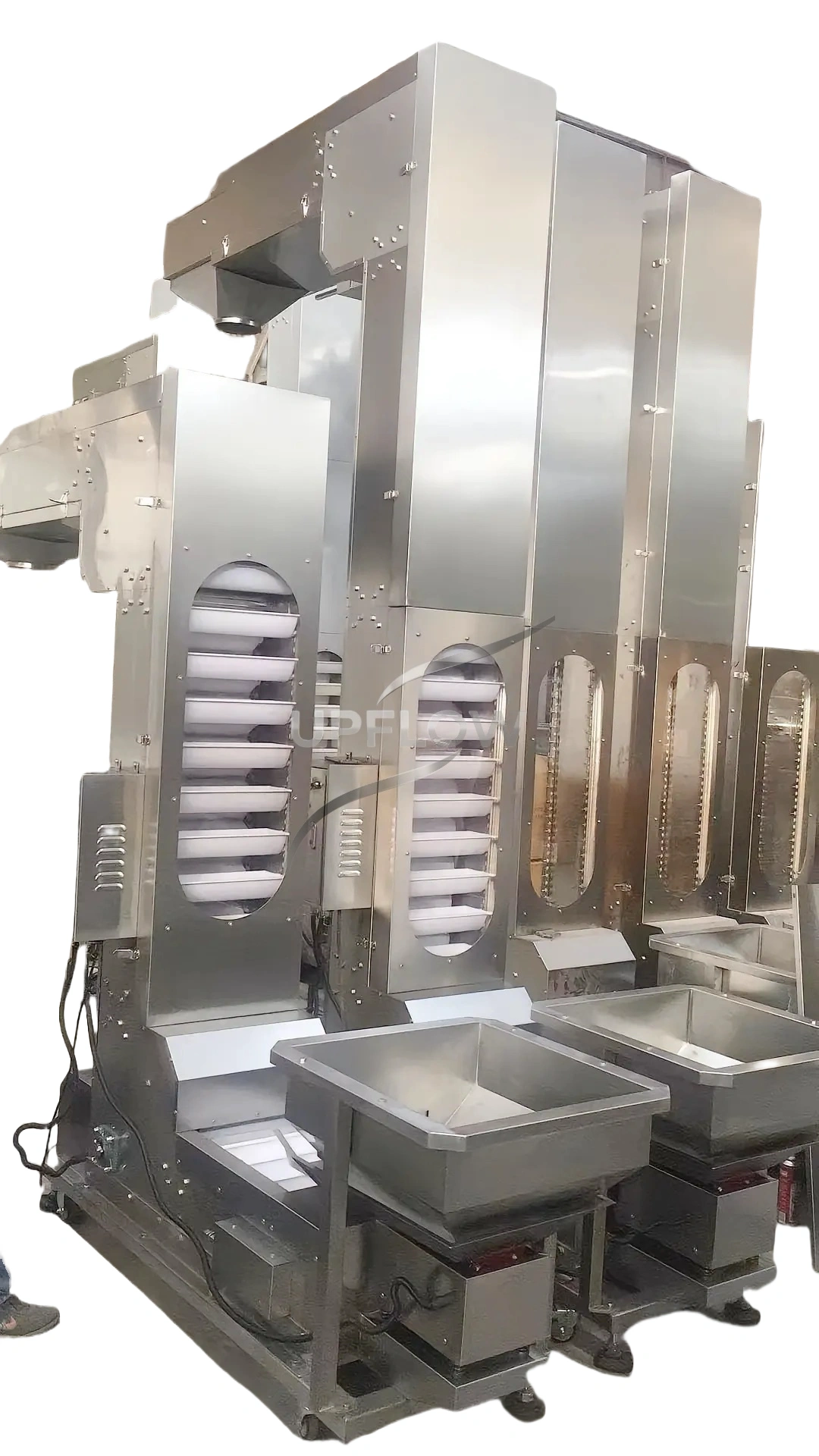

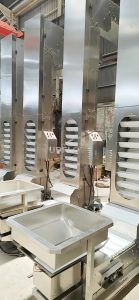

Product Images
Call to Action
Looking for a reliable Z-type Bucket Elevator for your material handling needs? Contact us today for a customized solution tailored to your industry requirements!
