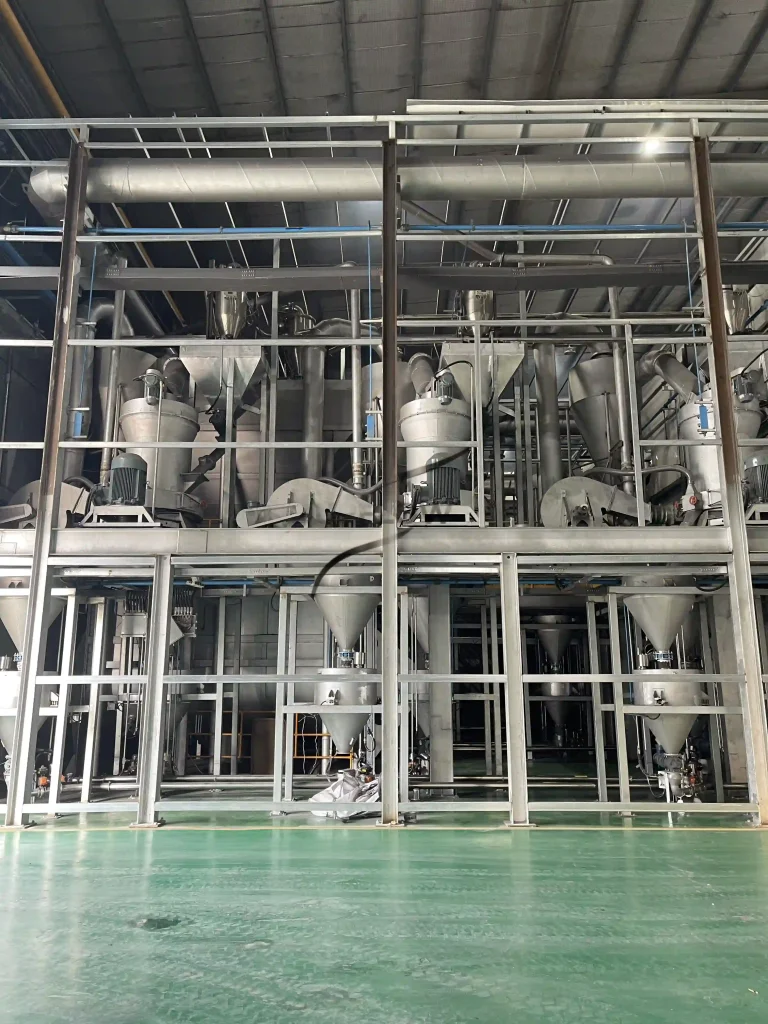

UPFLOW successfully designed and supplied a customized Alumina Pneumatic Conveying System for a Taiwan-based industrial manufacturer, providing a reliable powder transportation and batching solution for handling high-hardness alumina powder during the customer’s production process.
Unlike many conventional powder conveying applications, alumina powder transportation requires special engineering consideration because aluminum oxide (Al₂O₃) is a material with high hardness, strong abrasive characteristics and continuous wear potential during pneumatic transfer. When abrasive particles travel through conveying pipelines at high velocity, repeated impact and friction may gradually damage pipeline components, especially at elbows, bends and other areas where material flow direction changes.
Based on the customer’s production requirements and alumina powder characteristics, UPFLOW developed a customized wear resistant pneumatic conveying system by applying ceramic elbows and specially protected pipeline components in critical wear areas. The solution improved system durability while maintaining stable material transportation performance for long-term industrial operation.

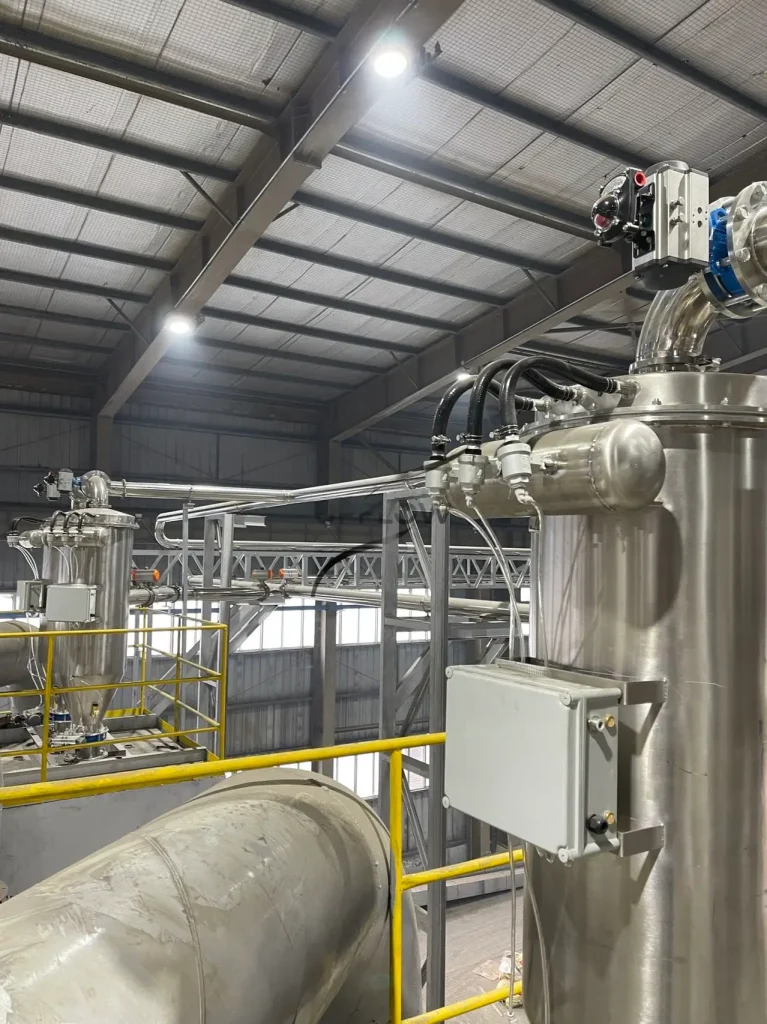

The customer, a Taiwan-based industrial manufacturer, required a reliable powder conveying solution for alumina material used in its production process.
Because alumina powder has excellent hardness and abrasive properties, the customer was looking for a system that could achieve stable transportation while reducing pipeline wear and maintenance requirements.
The main project requirements included:
Reliable alumina powder transportation
Continuous and stable material feeding
Reduced abrasion damage on conveying components
Longer service life of pipelines and elbows
Improved production stability
Automated powder transfer and process integration
For this application, a standard pneumatic conveying configuration was not sufficient, and the conveying system needed to be specifically designed according to the material characteristics.
Alumina, also known as aluminum oxide, is widely used in advanced materials, ceramics, electronics, refractory products and other industrial applications because of its excellent hardness, chemical stability and thermal resistance.
However, these same properties create challenges during powder transportation. In a pneumatic conveying process, alumina particles are accelerated by airflow and transported through pipelines under controlled pressure conditions. When particles pass through elbows or curved sections, centrifugal force causes increased collision between the powder and pipeline wall.
Over time, continuous impact from abrasive particles may lead to:
Pipeline thinning
Elbow wear
Increased maintenance frequency
Unexpected production interruptions
Therefore, for an Alumina Pneumatic Conveying System, wear protection and pipeline design are critical factors that directly influence system reliability and operating cost.
For more information of the Alumina Pneumatic Conveying System handling:Efficient Bulk Material Handling with an Alumina Powder Pneumatic Conveying System.
To overcome the abrasion challenge, UPFLOW developed a customized conveying solution incorporating ceramic wear-resistant components in key areas of the pipeline system.
The main solution features included:
Elbows are usually the most vulnerable components in abrasive powder conveying systems because material particles frequently impact the inner wall during direction changes.
By applying ceramic elbows in critical positions, the system achieved improved wear resistance and extended component service life.
The conveying pipeline layout was optimized according to alumina powder characteristics, reducing unnecessary impact points and improving material flow stability.
The complete system was engineered according to:
Alumina powder characteristics
Conveying distance
Required capacity
Production process requirements
Installation environment
This customized approach helped ensure reliable operation under demanding abrasive powder handling conditions.

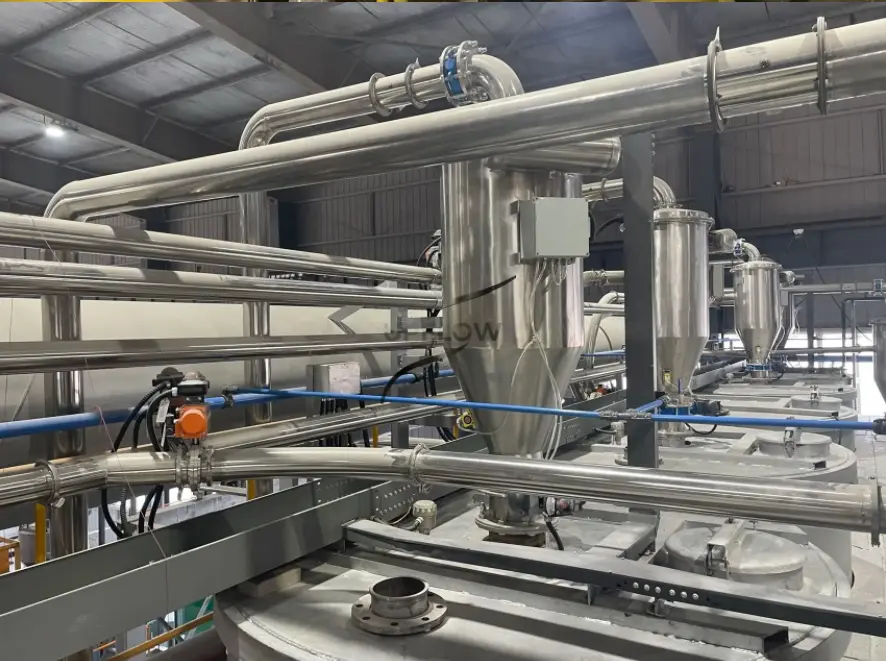

The customized Alumina Powder Conveying System included:
Pneumatic conveying equipment
Ceramic wear-resistant elbows
Protected pipeline sections
Powder feeding equipment
Receiving equipment
Automatic control system
The enclosed conveying design helped prevent powder leakage, improve workplace cleanliness and provide a more controlled material transfer process compared with traditional open handling methods.

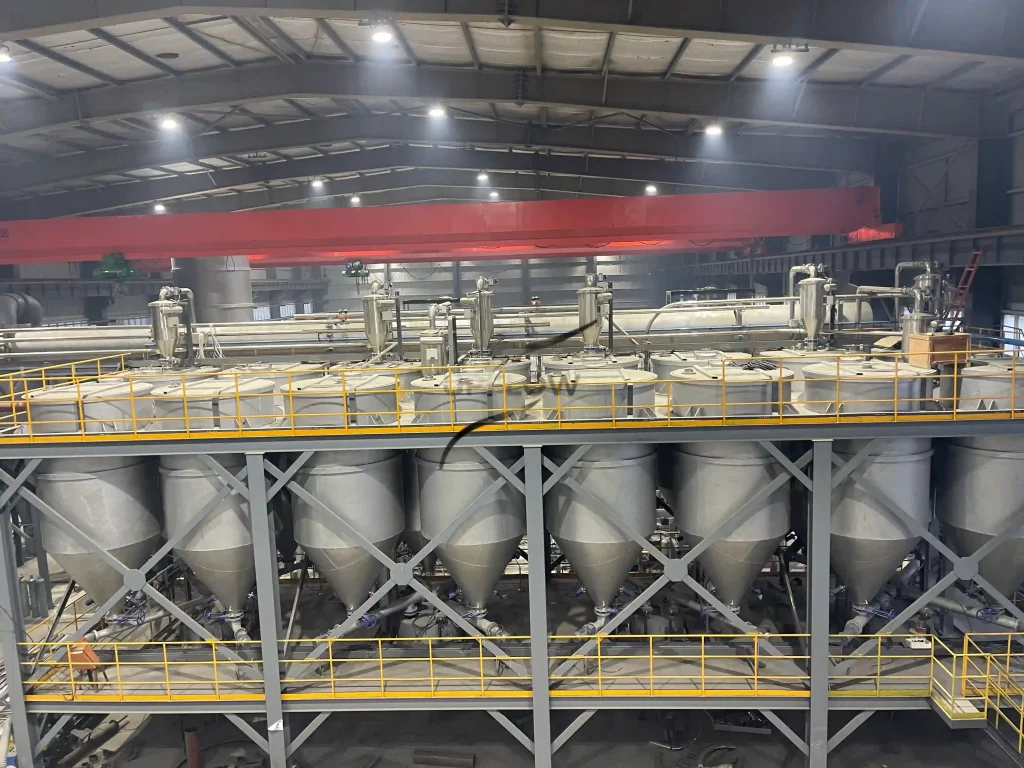

Through customized engineering design and proper wear-resistant component selection, UPFLOW successfully delivered an effective Aluminum Oxide Pneumatic Conveying System solution for the Taiwan industrial application.
The ceramic elbow design and wear-resistant pipeline protection significantly improved the system’s ability to handle abrasive alumina powder, helping reduce wear-related maintenance requirements and supporting more stable production operation.
This project demonstrates UPFLOW’s capability in solving complex powder handling challenges where material properties, equipment durability and production reliability are critical considerations.
For materials with high abrasion characteristics, pneumatic conveying provides several advantages when properly designed.
Compared with open mechanical transfer methods, a customized pneumatic conveying system provides:
Enclosed powder transportation
Reduced dust generation
Flexible pipeline arrangement
Automated material transfer
Better integration with production processes
However, abrasive materials such as alumina require professional engineering evaluation, including conveying velocity control, pipeline design and wear-resistant protection.
UPFLOW provides customized pneumatic conveying solutions for industries handling demanding powder materials, including abrasive minerals, chemical powders, pharmaceutical powders, food powders and battery materials.
Our engineering team evaluates each project based on:
Material characteristics
Particle size
Bulk density
Abrasiveness
Conveying distance
Production requirements
By combining pneumatic conveying technology with customized engineering solutions, UPFLOW helps customers achieve reliable and efficient powder handling performance in challenging industrial environments.
In addition to the alumina powder conveying project, UPFLOW has also provided customized pneumatic conveying solutions for other challenging powder handling applications.
For example, UPFLOW successfully delivered a magnesium silicate pneumatic conveying system for an overseas customer in Kenya, where the project involved powder transportation requirements, system integration and on-site installation support.
These projects demonstrate UPFLOW’s capability to design and manufacture customized powder conveying systems according to different material characteristics, production requirements and operating conditions.
Alumina powder has high hardness and strong abrasive properties, which can cause significant wear on pipelines and elbows during pneumatic transportation.
Ceramic elbows provide enhanced wear resistance in high-impact areas where alumina particles frequently collide with pipeline surfaces.
Yes. With proper system design, conveying parameter optimization and wear-resistant components, pneumatic conveying can effectively handle abrasive powders.
UPFLOW evaluates material properties, production requirements, conveying distance and wear risks before developing a customized conveying solution.
