Introduction
An automatic powder batching and conveying system has become a core infrastructure in modern industrial plants, especially in industries such as food, pharmaceuticals, chemicals, and new energy materials. As manufacturing moves toward intelligent and automated production, companies are increasingly replacing manual feeding and mixing with fully integrated batching and conveying systems to improve accuracy, reduce labor costs, and ensure consistent product quality.
In this 2026 guide, we will explore the design principles, system architecture, cost factors, and real project solutions for industrial powder handling systems, helping you choose the right solution for your plant.
Looking for a customized solution? Contact us today for a free system design and quotation.
Industry Background: Why Automation Is No Longer Optional
Traditional manual or semi-automatic batching methods often lead to:
Inconsistent ingredient ratios
High labor intensity and human errors
Dust pollution and material waste
Limited production scalability
With increasing demand for high precision (±0.1%–0.2%) and traceability, automated systems based on PLC/DCS control are now the standard.
According to industry trends, automated powder handling systems can:
Increase production efficiency by 20–40%
Reduce material waste by 10–25%
Improve product consistency significantly
For more on system applications, you can also read:
Typical Applications of Pneumatic Conveying Systems in Industry
How Pneumatic Conveying Systems Improve Food and Pharmaceutical Production
System Architecture and Design

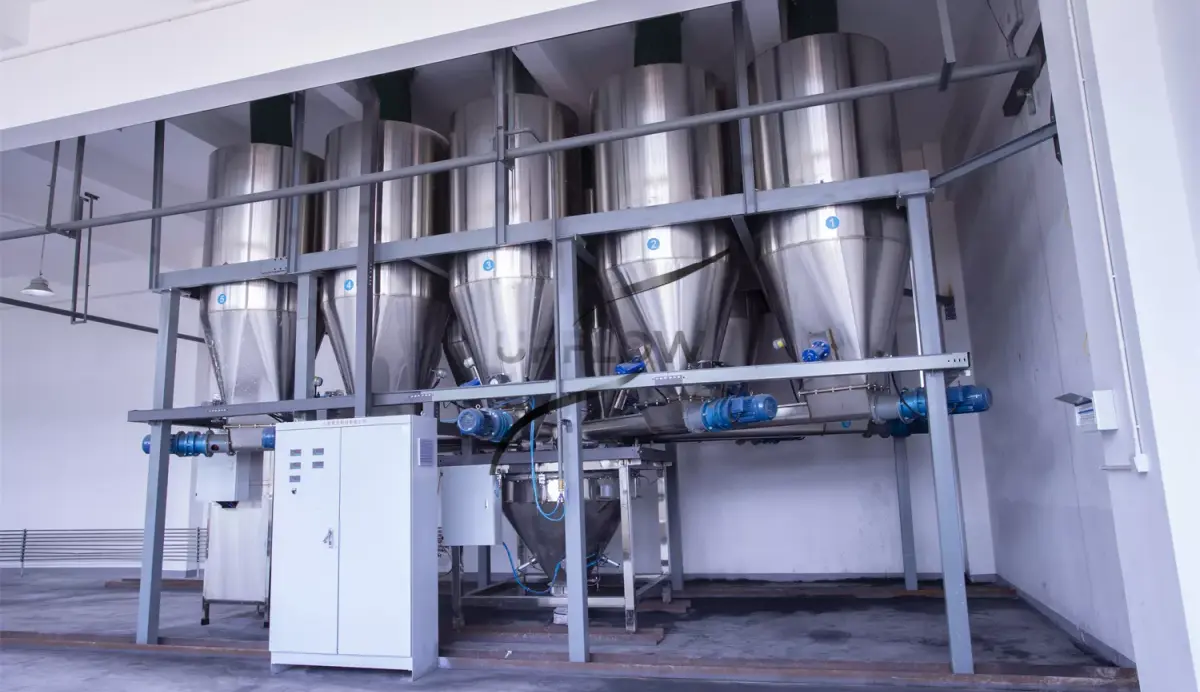

A typical automatic powder batching and conveying system adopts a multi-layer control architecture:
1. Process Control Layer
PLC or DCS controllers
Weighing sensors (load cells, ±0.1% accuracy)
Feeding equipment (screw feeders, rotary valves)
2. Control & Management Layer
Industrial Ethernet communication
Data acquisition and recipe management
Integration with ERP/MES systems via OPC UA
3. Human-Machine Interface (HMI)
Real-time monitoring dashboard
Alarm systems and production tracking
Recipe selection and parameter adjustment
To ensure reliability, redundancy designs such as dual PLC systems are often used to avoid production downtime.
Core System Components
1. Material Feeding & Storage System
Bag dumping stations (manual or automatic)
Central silos (3–10 m³ or customized)
These systems support 25kg bags, jumbo bags, and bulk materials, ensuring flexible feeding options.
2. Conveying System
Depending on material characteristics, the system may include:
Pneumatic conveying (positive or negative pressure)
Screw conveyors
Flexible screw feeders
Learn more:Dense Phase vs Dilute Phase Pneumatic Conveying: Key Differences and How to Choose

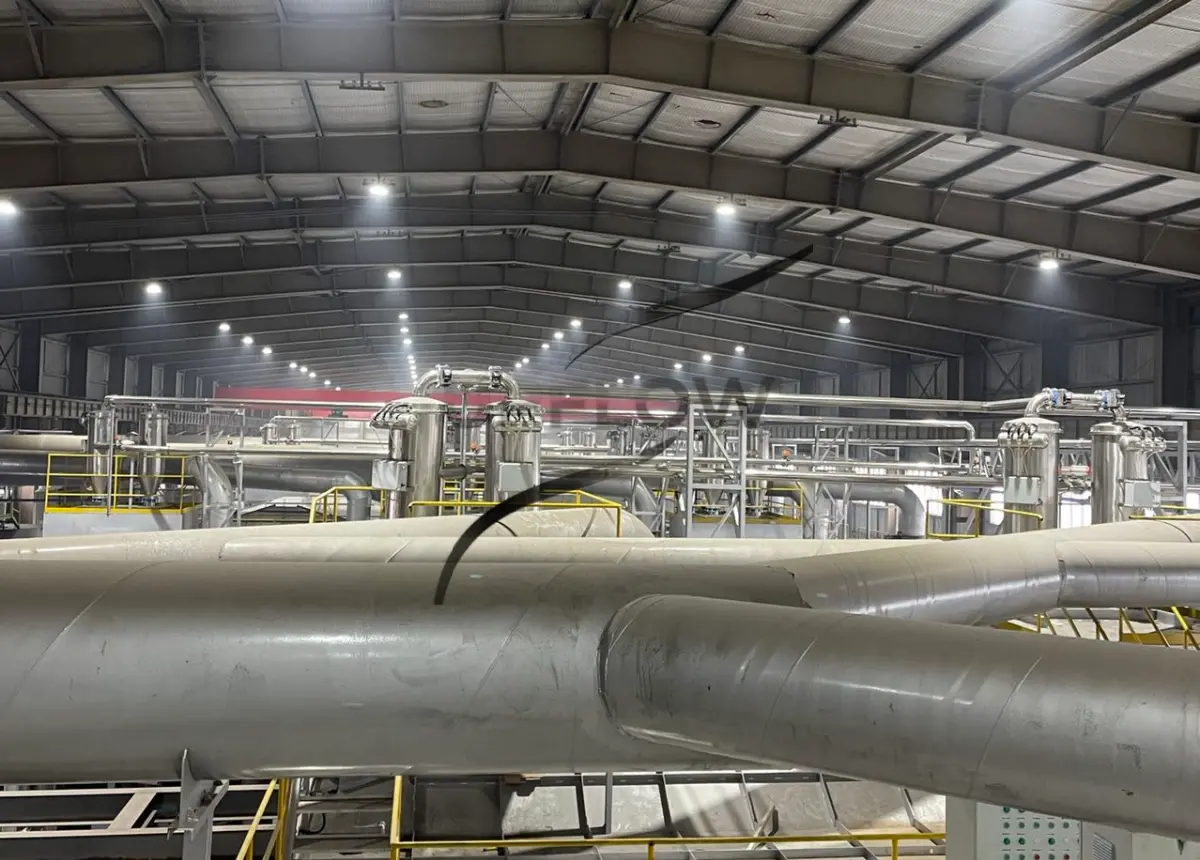

Pneumatic conveying is especially suitable for:
Dust-free conveying
Long-distance transport
Hygienic industries (food/pharma)

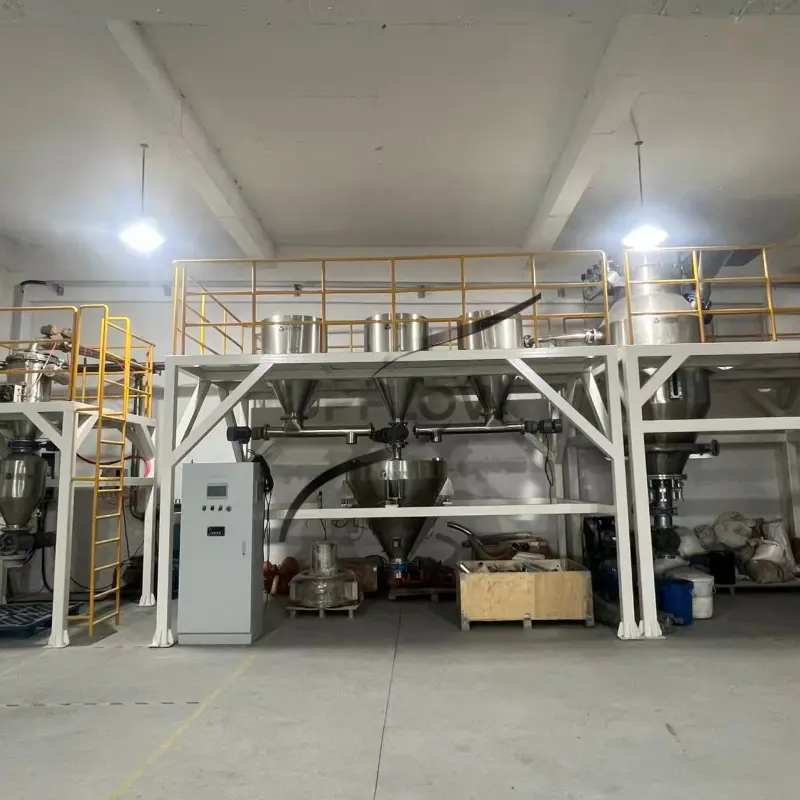

3. Weighing & Batching System
Two main configurations:
Gain-in-weight system (batching into hopper)
Loss-in-weight system (continuous feeding)
Features include:
Multi-component batching (4–40 materials)
Accuracy from grams to hundreds of kilograms
Dynamic PID control to minimize error
4. Mixing & Discharge System
Paddle mixers or ribbon mixers
Automatic discharge via rotary valves
Direct transfer to reactors, packaging lines, or silos
5. Intelligent Control System
PLC-based automation
Recipe storage and quick switching
Data traceability and reporting
Remote monitoring and diagnostics
System Solution: Fully Integrated Workflow
A typical automated solution includes:
1.Raw material unloading (bags or bulk)
2.Dust-free feeding into storage or conveying line
3.Pneumatic or mechanical conveying to weighing system
4.High-precision batching
5.Mixing process
6.Conveying to production line or packaging
The entire process is closed-loop, dust-free, and fully automated, significantly improving plant cleanliness and safety.
Need a turnkey system? We can design a complete batching + conveying solution tailored to your plant layout. Contact us now.
Design Considerations (Critical for Success)
Before designing a system, the following factors must be analyzed:
1. Material Characteristics
Bulk density
Flowability (free-flowing or cohesive)
Moisture content
Particle size
2. Production Requirements
Throughput (e.g., 500 kg/h – 10 t/h)
Batching accuracy (±0.1%–0.5%)
Number of materials
3. Plant Layout
Distance and height
Available space
Integration with existing equipment
4. Hygiene & Safety Requirements
Dust control
Explosion-proof design (ATEX if required)
Food-grade or GMP compliance
5. Scalability
Future expansion capability
Modular design
Learn more here: Integration of Pneumatic Conveying and Batching Systems in Modern Powder Handling.
Advanced System Optimization and Performance Improvement
In addition to standard system design, optimizing an automatic powder batching and conveying system is essential for achieving long-term stability, efficiency, and cost control. Many industrial plants initially focus on equipment selection but overlook system-level optimization, which can significantly impact performance.
1. Feeding Accuracy Optimization
One of the key challenges in powder batching systems is maintaining consistent accuracy under different operating conditions. Factors such as material flowability, humidity, and bulk density variations can affect dosing precision.
To address this, advanced systems integrate:
Multi-stage feeding (fast feeding + fine feeding)
Adaptive PID control algorithms
Real-time weight compensation
These technologies ensure that batching accuracy remains stable even when material characteristics fluctuate.
2. Preventing Material Segregation
In multi-component batching processes, especially when handling powders with different particle sizes or densities, material segregation can occur during conveying and mixing.
To minimize this issue:
Use dense phase conveying for fragile or easily segregated materials
Optimize pipeline design to reduce turbulence
Select appropriate mixers (e.g., paddle mixers for uniform blending)
Proper system design ensures that the final mixture maintains consistent composition, which is critical in industries like pharmaceuticals and food processing.
3. Dust Control and Environmental Protection
Dust generation is a major concern in powder handling systems. Poor dust control can lead to:
Product contamination
Workplace safety risks
Material loss
Modern systems adopt fully enclosed designs combined with:
Negative pressure conveying systems
Dust collectors and filtration units
Sealed feeding and discharge points
This not only improves workplace conditions but also ensures compliance with environmental and safety regulations.
4. System Flexibility and Recipe Management
Industrial plants often need to switch between different products or formulations. An efficient batching system should support:
Quick recipe switching (within minutes)
Storage of multiple formulas
Automatic parameter adjustment
This flexibility significantly reduces downtime and improves production efficiency.
5. Energy Efficiency Optimization
Energy consumption is another important factor in system operation. Optimized systems can reduce energy usage through:
Variable frequency drives (VFD) for motors
Optimized air consumption in pneumatic conveying
Smart control strategies to avoid unnecessary operation
Over time, these improvements can lead to substantial cost savings.
Cost Breakdown: What Determines System Price?
The cost of an automatic powder batching and conveying system depends on:
1. System Complexity
Number of materials
Degree of automation
Integration with ERP/MES
2. Equipment Selection
Pneumatic vs mechanical conveying
Type of feeders and mixers
Control system level (PLC vs DCS)
3. Material Requirements
Stainless steel (304/316L)
Anti-corrosion or explosion-proof design
4. Capacity
Higher throughput requires larger equipment
5. Customization Level
Tailored solutions increase initial cost but reduce long-term operation costs
Typical price range (reference):
Small system: USD 20,000–50,000
Medium system: USD 50,000–150,000
Large turnkey system: USD 150,000+
Want an accurate quotation? Send us your material and layout details—we’ll provide a detailed cost breakdown within 24 hours.
Extended Case Insight: Multi-Line Central Feeding System
In a recent project for a lithium battery material manufacturer, the client required a centralized powder feeding and batching system to supply multiple production lines simultaneously.
System Features:
Central storage silos (10 m³ capacity)
Independent conveying pipelines for each production line
Automatic batching system with 12 materials
Integration with MES system
Key Advantages:
No cross-interference between production lines
Real-time monitoring of material levels
Reduced manual feeding points by 70%
Improved workshop cleanliness and safety
This type of centralized system is increasingly popular in industries with high automation requirements and multiple production lines.
Why Optimization Matters
Many companies invest in automation but fail to achieve expected results due to poor system integration or lack of optimization. A well-designed system should not only function properly but also deliver:
Stable long-term operation
Low maintenance requirements
High scalability for future expansion
If you’re planning a new project or upgrading an existing system, it’s crucial to consider both design and optimization from the beginning.
Project Case Study
Chemical Powder Batching & Conveying Project
A chemical manufacturing company required a system for:
6 types of powder materials
Throughput: 3 tons/hour
Accuracy requirement: ±0.2%
Solution Provided:
Central silo storage system
Vacuum conveying system (dust-free)
Gain-in-weight batching system
Automatic mixer integration
PLC control with ERP interface
Results:
Accuracy improved from ±0.5% to ±0.15%
Production efficiency increased by 30%
Labor reduced by 50%
Annual material savings: over USD 30,000
Applications Across Industries
Automatic powder batching and conveying systems are widely used in:
Food processing (flour, sugar, additives)
Pharmaceuticals (API, excipients)
Chemicals (resins, pigments)
New energy (lithium battery materials)
Related reading:Pneumatic Conveying Systems for Lithium Battery Materials
Future Trends (2026 and Beyond)
The next generation of systems will focus on:
AI-based adaptive batching
Real-time data optimization
Fully digital factory integration
Energy-efficient conveying systems
Smart factories will increasingly rely on fully automated, data-driven powder handling systems.
Conclusion
An automatic powder batching and conveying system is no longer just an upgrade—it is a necessity for modern industrial plants aiming for efficiency, accuracy, and scalability.
From system design to cost optimization and real-world applications, choosing the right solution can significantly improve your production performance and long-term profitability.
